DL1SP13 Chrome Duallyvalve Kit
âš WARNING: This product is known to California to cause Cancer and or Reproductive Harm - www.P65Warnings.ca.gov.
Note: If you are not using OEM simulators, Our Inner & Outer Dual stems in our kit may not be long enough. Aftermarket simulators sit further away from the steel rim. Inner stem in this kit is 7" eff length. Please check the length before purchasing our stem kit.
Part # DL1SP13
Replacement 1-piece metal bolt-in valve stems for Class B and C Sprinter motorhomes. Traditionally, adding air to dually tires was difficult which required the use of specially designed air chucks and specially designed air gauges just to get to the valve stem. Not anymore! Duallyvalves are designed to make tire pressure checks and inflation easy on motorhomes. The length of the inner dual valve has been extended to reach the outer dual and the outer stem is curved making it easy to add air.
-
No more braided or rubber extensions that leak
-
No more rubber base valve stems
-
No more crawling around to locate the inner tire valve stem
Vehicle Application: Sprinter
Vehicle Class: C
Vehicle Year(s): 2012 - Present
Vehicle Wheel Size(s): 16”
Vehicle Wheel Types(s) Inner/Outer Dual Wheels: Steel/Steel
Vehicle Outer Dual Wheel Hand-Hole Shape: Round
Vehicle Outer Dual Wheel Wheel Hand-Hole Size: 1.5”
Kit Contents
(2) Inner Steel Dual Wheel 7" Sprinter Base Reverse mount Chrome Valve Stems .453
(2) Outer Steel Dual Wheel 3.5" Sprinter Base Triple Bend Reverse Mount Chrome Valve Stems .453
(2) Stabilizers (Go in the outer Wheel that stabilize the inner dual wheel stem. Does not go in the cover / simulator cover)
(1) 1.5" Round Packet of Loctite (To secure Reverse Mount Stems)
(1) DLPACKET Additional Grommets
IMPORTANT RE: SIMULATOR COVERS: The OEM Simulators are "Clip-on" not "Bolt-on" So they can rotate and cut a gouge in the Duallyvalve stems and or just fly off. We recommend to wire tie or zip tie your covers to your wheel in a few positions to prevent this.

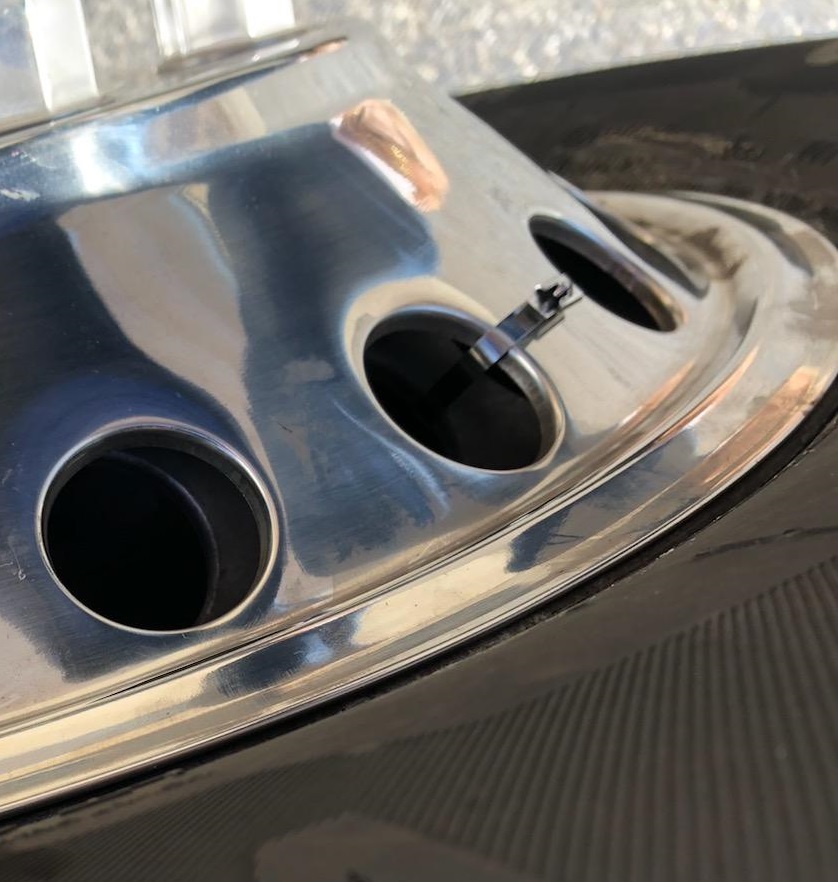

Metal Zip Ties on Front Wheel:

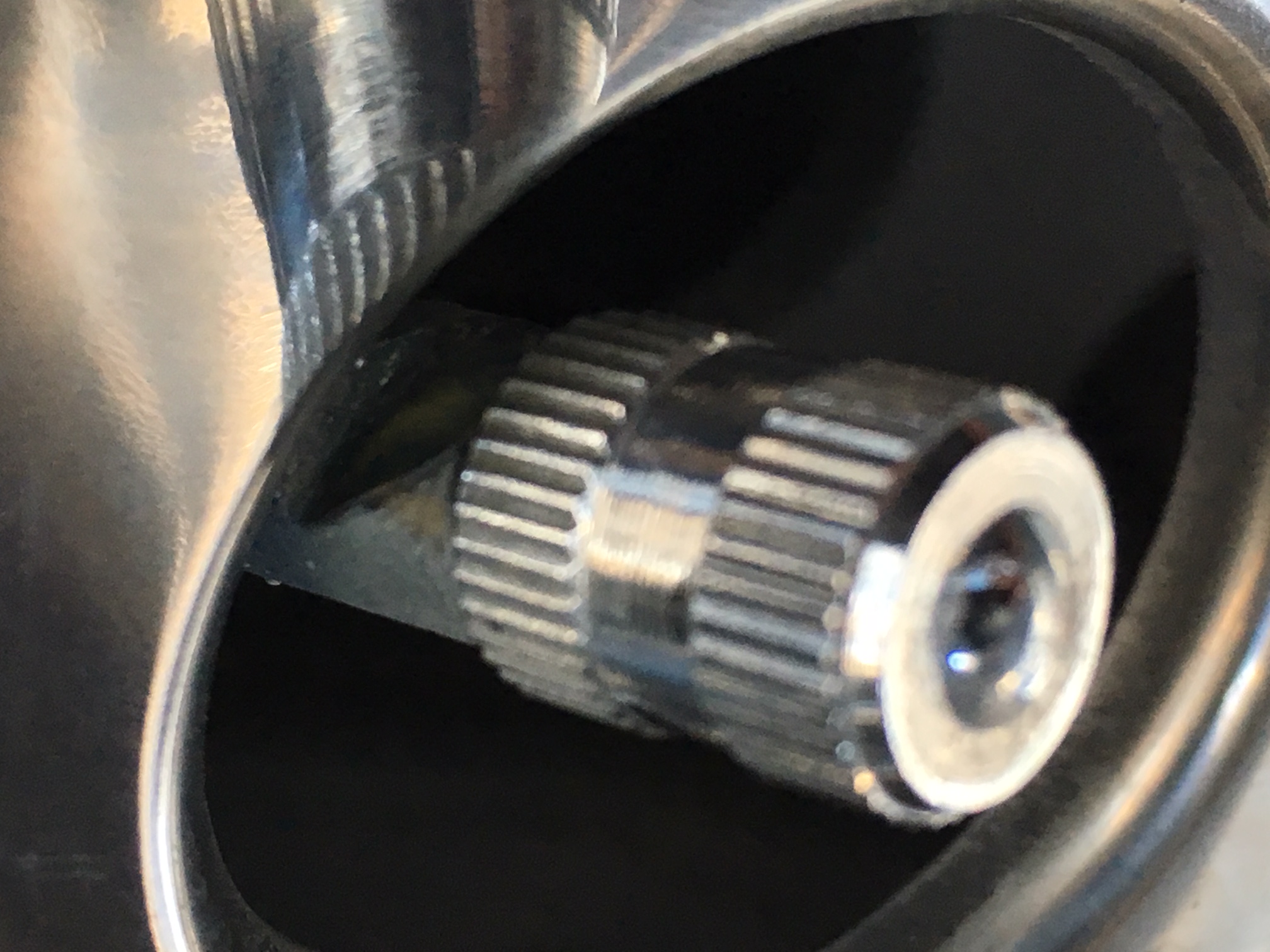

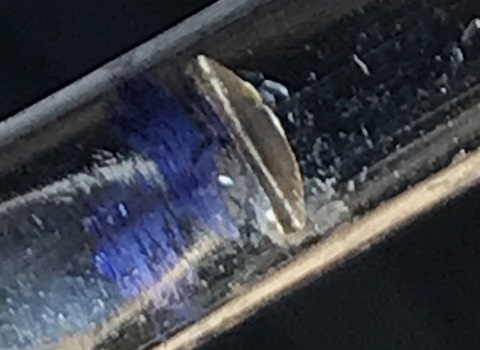

What the cover can do to the valve stem:
Warranty
Duallyvalve Parts 3 Years
TPMS
Duallyvalve stems DO NOT work with INTERNAL TPMS. Duallyvalves can work with External TPMS that go on the end of the valve stem.
Balancing
Having Duallyvalves makes it difficult for the tire shop to balance your inner tires on a standard machine due to the long inner valve stem. Duallyvalve is compatible with internal Balancing Compounds.
Tire Rotation
Having Duallyvalves make it difficult for the tire shop to rotate your tires. Inner stems, Outer stems and Front stems are all different. You can rotate Inner with Inner, Outer with Outer and Front with Front.
Replacement
To reduce potential future air leaks; we recommend after 5 years replacing the rubber seals on the valve stems in the Dually Valve Kit. Just give Duallyvalve a call 800-300-2674 or 818-352-8717 x111 and we would be happy to help you get what you need. NOTE: Some Aluminum wheel valve stems do not have replacement grommets.
FOR RE-INSTALL YOU NEED THE FOLLOWING PARTS: (1) DLPACKET, (1) PE9178
We also reccomend to wire tie or zip tie the wheel covers to the wheel in this application. They tend to rotate and fly off.
Similar Kit PN# for this vehicle application: DL1SP, DL1SPFR, DL1SP16, DL1SP16CFR, DL1SP13FR175, DL1SP13FR225, DL1SPAL, DL1SPAA, DL2SPNA, DL3SPNA
Package Weight & Dimensions
-
Height: 12.25"
-
Width: 3.5”
-
Depth: 1.75”
-
Weight: 2 lbs.
All of our Duallyvalve kits/parts ship out of our Headquarters in Tujunga, CA 91042
